Amazon Redshift/PostgreSQL

Amazon Redshift/PostgreSQL data sources and sinks are in the database category of I/O connectors.

Tool documentation

• PostgreSQL documentation
• AWS Redshift documentation

Connector type values

The "type": value to use in the source or sink JSON files.

Connector type	Value
Data source	DKDataSource_PostgreSQL
Data sink	DKDataSink_PostgreSQL

Connection properties

You can choose between two connection methods:

• Username-Password method: specify values for the database, hostname, username, password, and port fields.
• AWS Credentials method: specify values for the cluster, access-key, and secret-key fields.

Field	Scope	Type	Required?	Description
database	source/sink	string	depends on method	PostgreSQL database name.
hostname	source/sink	string	depends on method	PostgreSQL host name.
username	source/sink	string	depends on method	PostgreSQL username.
password	source/sink	string	depends on method	PostgreSQL password.
port	source/sink	string/number	depends on method	PostgreSQL port.
cluster	source/sink	string	depends on method	AWS cluster name.
region	source/sink	string	no	AWS region name.
access-key	source/sink	string	depends on method	AWS access key ID.
secret-key	source/sink	string	depends on method	AWS secret access key credential.
aws-session-token	source/sink	string	no	AWS session token optionally passed with access and secret keys in order to assume an IAM (AWS Identity and Access Management) role.

Connections

See Connection Properties for more details on connection configurations.

Defined in kitchen-level variables

postgresql in kitchen overrides

{
    "postgresqlconfig": {
        "username": "#{vault://postgresql/username}",
        "password": "#{vault://postgresql/password}",
        "hostname": "#{vault://postgresql/hostname}",
        "port": "#{vault://postgresql/port}",
        "database": "#{vault://postgresql/database}"
    }
}

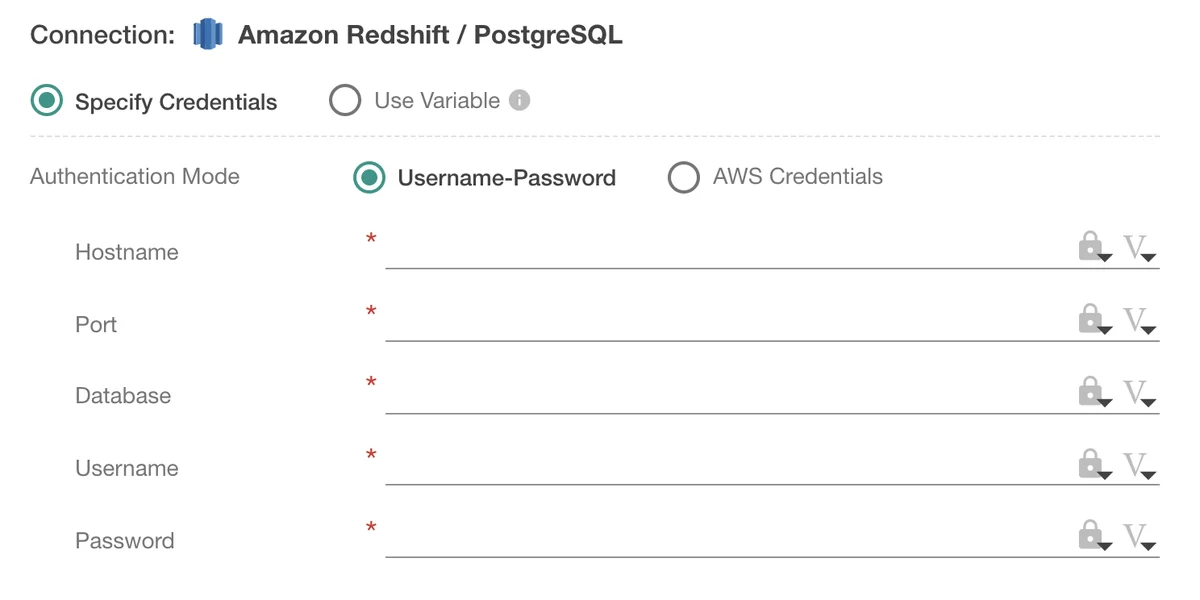

The Connection tab in a Node Editor

Expanded connection syntax

For a data source

postgresql_datasource.json

{
    "type": "DKDataSource_PostgreSQL",
    "name": "postgresql_datasource",
    "config": {
        "username": "{{postgresqlconfig.username}}",
        "password": "{{postgresqlconfig.password}}",
        "hostname": "{{postgresqlconfig.hostname}}",
        "port": "{{postgresqlconfig.port}}",
        "database": "{{postgresqlconfig.database}}"
    },
    "keys": {},
    "tests": {}
}

For a data sink

postgresql_datasink.json

{
    "type": "DKDataSink_PostgreSQL",
    "name": "postgresql_datasink",
    "config": {
        "username": "{{postgresqlconfig.username}}",
        "password": "{{postgresqlconfig.password}}",
        "hostname": "{{postgresqlconfig.hostname}}",
        "port": "{{postgresqlconfig.port}}",
        "database": "{{postgresqlconfig.database}}"
    },
    "keys": {},
    "tests": {}
}

Condensed connection syntax

Note

Note: Do not use quotes for your condensed connection configuration variables.

For a data source

postgresql_datasource.json

{
    "type": "DKDataSource_PostgreSQL",
    "name": "postgresql_datasource",
    "config-ref": "postgresqlconfig",
    "keys": {},
    "tests": {}
}

For a data sink

postgresql_datasink.json

{
    "type": "DKDataSink_PostgreSQL",
    "name": "postgresql_datasink",
    "config-ref": "postgresqlconfig",
    "keys": {},
    "tests": {}
}

Local connections

PostgreSQL database contents can be viewed locally by configuring connections with IDEs like PyCharm or database query tools like DBeaver or MySQL Workbench.

Tip

Connecting PyCharm or DataGrip to MySQL: See the Database connection topic in PyCharm help for detailed information.

Other configuration properties

See the following topics for common properties and runtime variables:

• Database Properties
• Database Variables

File encoding requirements

Files used with data sources and data sinks must be encoded in UTF-8 in order to avoid non-Unicode characters causing problems with sinking data to database tables and errors when running related tests

For CSV and other delimited files, use Save as in the program and select the proper encoding, or consider using a text editor with encoding options.

Data source example

postgresql_datasource.json

{
    "type": "DKDataSource_PostgreSQL",
    "name": "postgresql_datasource",
    "config-ref": "samples_postgres_config",
    "set-runtime-vars": {
        "key_count": "global_key_count"
    },
    "keys": {
        "create_table": {
            "sql": "{{load_text('postgres/create.sql')}}",
            "query-type": "execute_scalar",
            "set-runtime-vars": {
                "result": "create_table_result"
            }
        },
        "insert_data": {
            "sql": "{{load_text('postgres/create.sql')}}",
            "query-type": "execute_scalar",
            "set-runtime-vars": {
                "result": "insert_data_result"
            }
        },
        "my_query": {
            "sql": "select * from {{samples_postgres_config.schema}}.{{redshifttablename}};",
            "query-type": "execute_query",
            "set-runtime-vars" :{
                "column_count": "my_query_column_count",
                "row_count": "my_query_row_count"
            }
        }
    },
    "tests": {
        "test-runtime_variable_create_table_result": {
            "test-variable": "create_table_result",
            "action": "stop-on-error",
            "test-logic": "create_table_result == 0"
        },
        "test-runtime_variable_insert_data_result": {
            "test-variable": "insert_data_result",
            "action": "stop-on-error",
            "test-logic": "insert_data_result == 2"
        },
        "test-runtime_variable_my_query_column_count": {
            "test-variable": "my_query_column_count",
            "action": "stop-on-error",
            "test-logic": "my_query_column_count == 2"
        },
        "test-runtime_variable_my_query_row_count": {
            "test-variable": "my_query_row_count",
            "action": "stop-on-error",
            "test-logic": "my_query_row_count == 2"
        },
        "test-runtime_variable_global_key_count": {
            "test-variable": "global_key_count",
            "action": "stop-on-error",
            "test-logic": "global_key_count == 3"
        }
    }
}
