Amazon S3

Amazon S3 data sources and sinks are in the file-based category of I/O connectors.

Tool documentation

• Amazon S3 documentation

Connector type values

The "type": value to use in the source or sink JSON files.

Connector type	Value
Data Source	DKDataSource_S3
Data Sink	DKDataSink_S3

Connection properties

The properties to use when connecting to an Amazon S3 instance from Automation.

Field	Scope	Type	Required?	Description
bucket	source/sink	string	yes	Bucket name.
public-bucket	source/sink	Boolean	no	When public, s3-access-key and s3-secret-key are not required.
access-key	source/sink	string	yes if public-bucket is false	AWS access key.
secret-key	source/sink	string	yes if public-bucket is false	AWS secret key.
aws-session-token	source/sink	string	no	AWS session token optionally passed with access and secret keys in order to assume an IAM (AWS Identity and Access Management) role.
region	source/sink	string	no	AWS region name.

Connections

See Connection Properties for more details on connection configurations.

Defined in kitchen-level variables

s3config in kitchen overrides

{
    "s3config": {
        "secret-key": "#{vault://s3/secret_key}",
        "access-key": "#{vault://s3/access_key}",
        "bucket": "#{vault://s3/bucket}"
    }
}

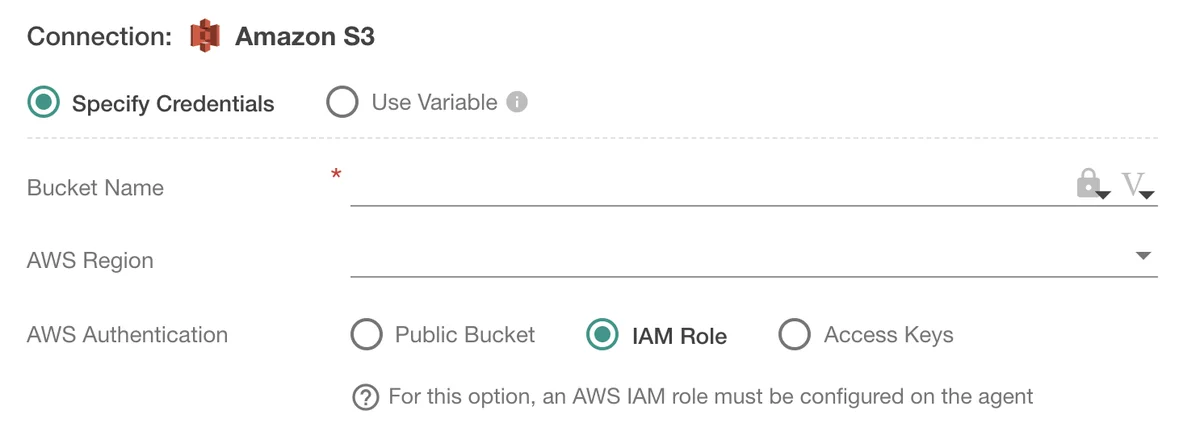

The Connection tab in a Node Editor

Expanded connection syntax

For a data source

s3_datasource.json

{
    "type": "DKDataSource_S3",
    "name": "s3_datasource",
    "config": {
        "access-key": "{{s3config.accesskey}}",
        "secret-key": "{{s3config.secretkey}}",
        "bucket": "{{s3config.bucketname}}"
    },
    "keys": {},
    "tests": {}
}

For a data sink

s3_datasink.json

{
    "type": "DKDataSink_S3",
    "name": "s3_datasink",
    "config": {
        "access-key": "{{s3config.accesskey}}",
        "secret-key": "{{s3config.secretkey}}",
        "bucket": "{{s3config.bucketname}}"
    },
    "keys": {},
    "tests": {}
}

Condensed connection syntax

Note

Note: Do not use quotes for your condensed connection configuration variables.

For a data source

s3_datasource.json

{
    "type": "DKDataSource_S3",
    "name": "s3_datasource",
    "config-ref": "s3config",
    "keys": {},
    "tests": {}
}

For a data sink

s3_datasink.json

{
    "type": "DKDataSink_S3",
    "name": "s3_datasink",
    "config-ref": "s3config",
    "keys": {},
    "tests": {}
}

Local connectionss

S3 bucket contents can be viewed locally by configuring connections with file-transfer applications like Transmit.

Other configuration properties

See the following topics for common properties, wildcards, and runtime variables:

• File-Based Properties
• File-Based Wildcards
• File-Based Variables

File encoding requirements

Files used with data sources and data sinks must be encoded in UTF-8 in order to avoid non-Unicode characters causing problems with sinking data to database tables and errors when running related tests

For CSV and other delimited files, use Save as in the program and select the proper encoding, or consider using a text editor with encoding options.

Data source examples

Example source 1

s3_datasource.json

{
    "type": "DKDataSource_S3",
    "name": "s3_datasource",
    "config": {{s3config}},
    "keys": {
            "example-key": {
                "file-key": "",
                "decrypt-key": "",
                "decrypt-passphrase": "",
            }
    },
    "tests": {}
}

Example source 2

s3_datasource.json

{
    "type": "DKDataSource_S3",
    "name": "s3_datasource",
    "public-bucket": true,
    "bucket": "datakitchen-public",
    "wildcard": "*.csv",
    "wildcard-key-prefix": "dk-public/",
    "set-runtime-vars": {
        "key_count": "total_csv",
        "size": "real_size"
    },
    "tests": {
        "test-key-count": {
            "test-logic": {
                "test-compare": "equal-to",
                "test-metric": 3
            },
            "action": "stop-on-error",
            "type": "test-contents-as-integer",
            "test-variable": "total_csv",
            "keep-history": false
        }
    }
}

Example source 3

To concatenate all files in a given path, create a key with the name of the path and set the value of file-key to CONCATENATE_ALL_FILES.

s3_datasource.json

{
    "type": "DKDataSource_S3",
    "name": "s3_datasource",
    "public-bucket": true,
    "bucket": "datakitchen-public",
    "wildcard": "",
    "set-runtime-vars": {
        "key_count": "total_csv_concat"
    },
    "keys": {
        "dk-public/concat_file_test/": {
            "file-key": "CONCATENATE_ALL_FILES"
        }
    },
    "tests": {
        "test-key-count-concat": {
            "test-logic": {
                "test-compare": "equal-to",
                "test-metric": 1
            },
            "action": "stop-on-error",
            "type": "test-file-count",
            "test-variable": "total_csv_concat",
            "keep-history": false,
        },
    }
}

Data sink examples

Example sink 1

Push all files (matching the * wildcard) within the /vendor-name directory to a public S3 bucket.

s3_datasource.json

{
    "type": "DKDataSink_S3",
    "name": "s3_datasource.json",
    "public-bucket": true,
    "bucket": "my-public-bucket",
    "wildcard": "*",
    "wildcard-key-prefix": "vendor_name/",
    "keys": {}
}

Example sink 2

s3_datasink.json

{
    "type": "DKDataSink_S3",
    "name": "s3_datasink",
    "config": {{s3config}},
    "keys": {
        "raw/vendor_name/{{vendor_name_date}}/accounts": {
            "file-key": "",
            "encrypt-key": "#{vault://secret-key}"
        },
    },
    "tests": {}
}
