Microsoft SQL Server/Azure Synapse

Microsoft SQL Server (MS SQL)/Azure Synapse data sources and sinks are in the database category of I/O connectors.

Tool documentation

• Microsoft SQL Server documentation

Connector type values

The "type": value to use in the source or sink JSON files.

Connector type	Value
Data source	DKDataSource_MSSQL
Data Ssnk	DKDataSink_MSSQL

Connection properties

The properties to use when connecting to a Microsoft SQL Server/Azure Synapse instance from Automation.

Field	Scope	Type	Required?	Description
database	source/sink	string	yes	MSSQL database name.
hostname	source/sink	string	yes	MSSQL host name.
password	source/sink	string	yes	MSSQL password.
port	source/sink	string/number	no	MSSQL port. Default port is 1433.
username	source/sink	string	yes	MSSQL username. An Azure Synapse username must include the subdomain. As per this pymssql resource, you must use username@xxx, as in 'username@server' rather than 'username' or 'username@server.sql.azuresynapse.net'.
azure-database	source/sink	Boolean	yes	Selection for Azure Synapse database (true) or Microsoft SQL Server database (false).

Connections

See Connection Properties for more details on connection configurations.

Defined in kitchen-level variables

mssqlconfig in kitchen overrides

{
    "mssqlconfig": {
        "username": "#{vault://mssql/username}",
        "password": "#{vault://mssql/password}",
        "hostname": "#{vault://mssql/hostname}",
        "database": "#{vault://mssql/database}",
        "port": "#{vault://mssql/port}",
        "azure-database": false
    }
}

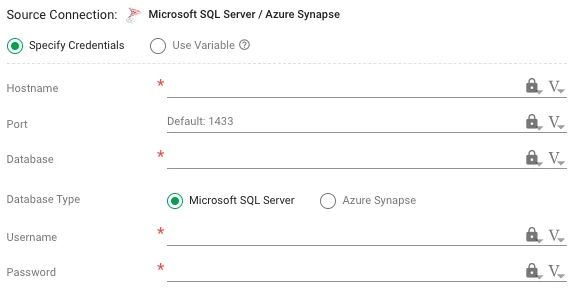

The Connection tab in a Node Editor

Expanded Connection Syntax

For a data source

mssql_datasource.json

{
    "name": "mssql_datasource",
    "type": "DKDataSource_MSSQL",
    "config": {
        "username": "{{mssqlconfig.username}}",
        "password": "{{mssqlconfig.password}}",
        "hostname": "{{mssqlconfig.hostname}}",
        "database": "{{mssqlconfig.database}}",
        "port": "{{mssqlconfig.port}}",
        "azure-database": false
    },
    "keys": {},
    "tests": {}
}

For a data sink

mssql_datasink.json

{
    "name": "mssql_datasink",
    "type": "DKDataSink_MSSQL",
    "config": {
        "username": "{{mssql.username}}",
        "password": "{{mssql.password}}",
        "hostname": "{{mssql.hostname}}",
        "database": "{{mssql.database}}",
        "port": "{{mssql.port}}",
        "azure-database": false
    },
    "keys": {},
    "tests": {}
}

Condensed connection syntax

Note

Note: Do not use quotes for your condensed connection configuration variables.

For a data source

mssql_datasource.json

{
    "type": "DKDataSource_MSSQL",
    "name": "mssql_datasource",
    "config-ref": "mssqlconfig",
    "keys": {},
    "tests": {}
}

For a data sink

mssql_datasink.json

{
    "type": "DKDataSink_MSSQL",
    "name": "mssql_datasink",
    "config-ref": "mssqlconfig",
    "keys": {},
    "tests": {}
}

Local connections

MS SQL database contents may be viewed locally by configuring connections with IDEs like PyCharm or database query tools like DBeaver or MySQL Workbench.

Tip

Connecting PyCharm or DataGrip to MySQL: See the Database connection topic in PyCharm help for detailed information.

Other configuration properties

See the following topics for common properties and runtime variables.

• Database Properties
• Database Variables

Additional MS SQL step (key) properties

Field	Type	Required?	Description
batch-size	string/number	no	Supported for MS SQL data sinks only. Specifies the number of rows to send to the server as a single packet. Default 5000. Used by freebcp query type only.
maxerrors	integer	no	Available only when query-type is freebcp. Specifies the maximum amount of allowed errors on insert.

File encoding requirements

Files used with data sources and data sinks must be encoded in UTF-8 in order to avoid non-Unicode characters causing problems with sinking data to database tables and errors when running related tests

For CSV and other delimited files, use Save as in the program and select the proper encoding, or consider using a text editor with encoding options.

Data source example

Configure a key to insert a WAITFOR interval.

mssql_datasource.json

{
    "type": "DKDataSource_MSSQL",
    "name": "mssql_datasource",
    "config": {{mssqlconfig}},
    "keys": {
        "wait": {
            "query-type": "execute_scalar",
            "sql": "WAITFOR DELAY '{{delay_time2}}';"
        }
    },
    "tests": {

    }
}

Data sink example

Load data from a file-based source into a SQL Server table by mapping through a delimited file.

Note the col-delimiter and date-format required for proper mapping into MS SQL.

mssql_datasink.json

{
    "type": "DKDataSink_MSSQL",
    "name": "mssql_datasink",
    "config": {{mssqlconfig}},
    "keys": {
        "mapping1_sink": {
            "query-type": "freebcp",
            "table-name": "{{redshiftConfig.schema}}.raw_demo__orders",
            "format": "csv",
            "col-delimiter": "|",
            "date-format": "%Y-%m-%d"
        }
    },
    "tests": {
        "Num_New_Orders_Min": {
            "action": "stop-on-error",
            "test-variable": "num_new_orders",
            "type": "test-contents-as-integer",
            "test-logic": {
                "test-compare": "greater-than",
                "test-metric": 1000
            }
        }
    }
}
