Snowflake

Snowflake data sources and sinks are in the database category of I/O connectors.

Tool documentation

As a data warehousing solution, Snowflake can perform more than just database operations. For complete details, see Snowflake's documentation.

Connector type values

The "type": value to use in the source or sink JSON files.

Connector type	Value
Data source	DKDataSource_Snowflake
Data sink	DKDataSink_Snowflake

Connection properties

The properties to use when connecting to a Snowflake instance from Automation.

Field	Scope	Type	Required?	Description
account	source/sink	string	yes	Snowflake account name. Do not include snowflakecomputing.com in the account name. The Automation system adds this information automatically.
role	source/sink	string	no	Snowflake role.
warehouse	source/sink	string	no	Snowflake warehouse name.
database	source/sink	string	no	Snowflake database (a grouping of schemas).
schema	source/sink	string	no	Snowflake schema (a grouping of database objects).
username	source/sink	string	yes	Snowflake username.
password	source/sink	string	yes	Snowflake password.

Connections

See Connection Properties for more details on connection configurations.

Defined in kitchen-level variables

snowflakeConfig

{
    "snowflakeConfig": {
        "account": "#{vault://snowflake/account}",
        "role": "#{vault://snowflake/role}",
        "warehouse": "#{vault://snowflake/warehouse}",
        "database": "#{vault://snowflake/database}",
        "schema": "#{vault://snowflake/schema}",
        "username": "#{vault://snowflake/username}",
        "password": "#{vault://snowflake/password}"
    }
}

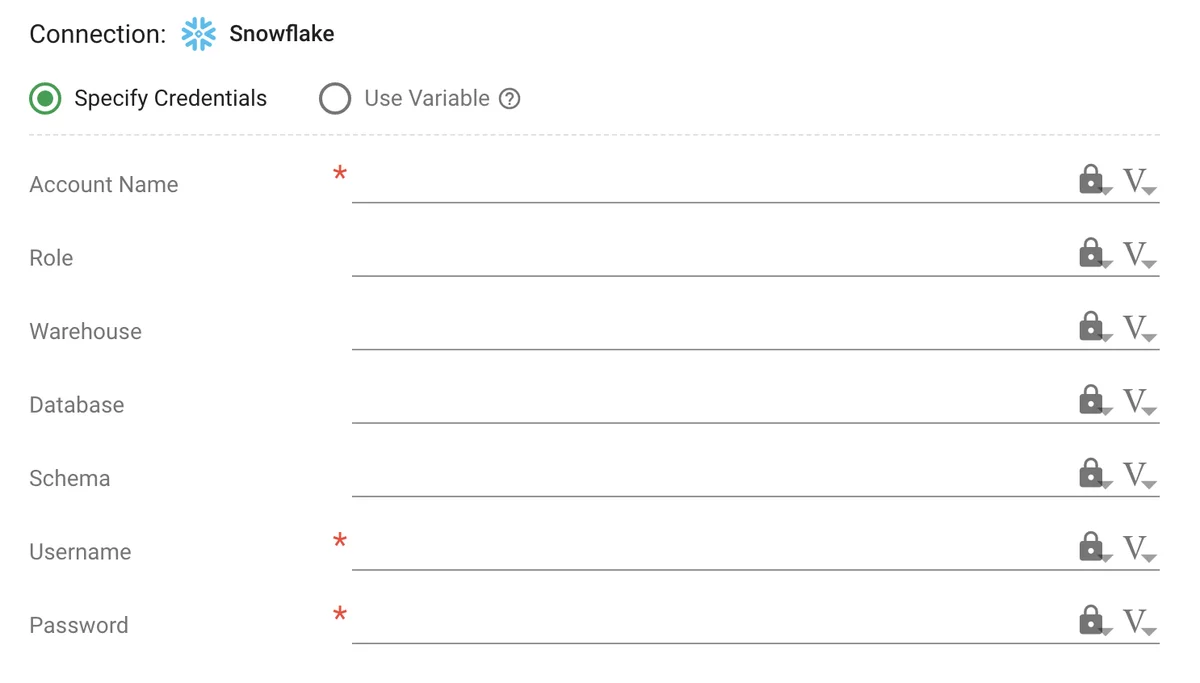

The Connection tab in a Node Editor

Expanded connection syntax

For a data source

source.json

{
    "type": "DKDataSource_Snowflake",
    "name": "source",
    "config": {
        "username": "{{snowflakeConfig.username}}",
        "password": "{{snowflakeConfig.password}}",
        "account": "{{snowflakeConfig.account}}",
        "role": "{{snowflakeConfig.role}}",
        "warehouse": "{{snowflakeConfig.warehouse}}",
        "database": "{{snowflakeConfig.database}}",
        "schema": "{{snowflakeConfig.schema}}"
    },
    "keys": {},
    "tests": {}
}

For a data sink

sink.json

{
    "type": "DKDataSink_Snowflake",
    "name": "sink",
    "config": {
        "username": "{{snowflakeConfig.username}}",
        "password": "{{snowflakeConfig.password}}",
        "account": "{{snowflakeConfig.account}}",
        "role": "{{snowflakeConfig.role}}",
        "warehouse": "{{snowflakeConfig.warehouse}}",
        "database": "{{snowflakeConfig.database}}",
        "schema": "{{snowflakeConfig.schema}}"
    },
    "keys": {},
    "tests": {}
}

Condensed connection syntax

Note

Note: Do not use quotes for condensed connection configuration variables.

For a data source

source.json

{
    "type": "DKDataSource_Snowflake",
    "name": "source",
    "config-ref": "snowflakeConfig",
    "keys": {},
    "tests": {}
}

For a data sink

sink.json

{
    "type": "DKDataSink_Snowflake",
    "name": "sink",
    "config-ref": "snowflakeConfig",
    "keys": {},
    "tests": {}
}

Connect to the Snowflake platform

After creating your Snowflake account, access Snowflake data warehousing information through the Snowflake Portal. There, you can find details on databases, worksheets, and warehouses. Learn more in the Snowflake Getting Started guide.

You must create a warehouse to use the DataKitchen connector.

The Python connector uses two methods to connect to the Snowflake platform. Both tools are available in DataKitchen agents, so there is no additional installation necessary.

• Snowflake Python connector: https://docs.snowflake.com/en/user-guide/python-connector.html
• SnowSQL (CLI client): https://docs.snowflake.com/en/user-guide/snowsql.html

Other configuration properties

See the following topics for common properties and runtime variables:

• Database Properties
• Database Variables

Additional Snowflake step (key) properties

Field	Type	Required?	Description
query-type	string	yes	Required. Specifies the type of operation to be performed by a step (key). See notes here for details specific to Snowflake sources and sinks. execute_query: (sources only) Executes a query and exports the resulting rowset in the format specified by the format field. Note: execute_query supports a single snowflake command (query), that may be preceded by any number of “use “ Snowflake clauses (e.g., “use database name”, “use schema name”, etc). Note: This functionality is implemented using the Snowflake Python connector. execute_scalar: (sources only) Performs a query for a scalar value, like sum(), count(), etc. Note: execute_scalar supports any number of Snowflake commands. Note: Only the last statement has to return a scalar. Note: This functionality uses SnowSQL. execute_non_query: (sources only) Intended for DML/DDL statements. Note: execute_non_query supports any number of Snowflake commands. Note: This functionality uses SnowSQL. execute_dml: (sinks only) Uses an insert template string for creating the insert sentence. Note: This sink functionality uses the Snowflake Python connector. bulk_insert: (sinks only) Performs a bulk insert from the input data. Note: This sink functionality uses the Snowflake Python connector.

Note

DATE SQL types handling: For DATE SQL types, the Python Snowflake source uses the Python datetime format to return DATE fields: '%Y-%m-%d %H:%M:%S'. When Snowflake Sink loads data from input files, it expects DATE fields in this datetime format.

File encoding requirements

Files used with data sources and data sinks must be encoded in UTF-8 in order to avoid non-Unicode characters causing problems with sinking data to database tables and errors when running related tests

For CSV and other delimited files, use Save as in the program and select the proper encoding, or consider using a text editor with encoding options.

Data source example

source.json

{
    "type": "DKDataSource_Snowflake",
    "name": "source",
    "config-ref" : "snowflakeConfig",
    "keys": {
        "create_table": {
            "target-field": "sql",
            "resource-file": "snowflake/create.sql",
            "query-type": "execute_scalar",
            "set-runtime-vars" : {
                "result" : "create_table_result"
            }
        },
        "insert_data": {
            "target-field": "sql",
            "resource-file": "postgres/insert.sql",
            "query-type": "execute_scalar",
            "set-runtime-vars" : {
                "result" : "insert_data_result"
            }
        },
        "my_query": {
            "sql": "use database {{snowflake_databasename}};
 use schema {{snowflake_databasename}}.{{snowflake_schemaname}};
 select * from {{snowflake_tablename}};",
            "query-type": "execute_query",
            "set-runtime-vars" : {
                "column_count": "my_query_column_count",
                "row_count": "my_query_row_count"
            }
        }
    }

    "tests": {
        "test-runtime_variable_create_table_result": {
            "test-variable": "create_table_result",
            "action": "stop-on-error",
            "test-logic": "create_table_result == 0"
        },
        "test-runtime_variable_insert_data_result": {
            "test-variable": "insert_data_result",
            "action": "stop-on-error",
            "test-logic": "insert_data_result == 2"
        },
        "test-runtime_variable_my_query_column_count": {
            "test-variable": "my_query_column_count",
            "action": "stop-on-error",
            "test-logic": "my_query_column_count == 2"
        },
        "test-runtime_variable_my_query_row_count": {
            "test-variable": "my_query_row_count",
            "action": "stop-on-error",
            "test-logic": "my_query_row_count == 2"
        }
    }
}

Data sink example

sink.json

{
    "type": "DKDataSink_Snowflake",
    "name": "sink",
    "config-ref": "snowflakeConfig",
    "keys": {
        "insert_template": {
            "sql": "insert into {{snowflake_databasename}}.{{snowflake_schemaname}}.test_data1(id, data) values(%s, %s);",
            "query-type": "execute_dml",
            "format": "csv"
        },
        "insert_bulk_csv": {
            "table-name": "{{snowflake_databasename}}.{{snowflake_schemaname}}.test_data2",
            "query-type": "bulk_insert",
            "format": "csv"
        },
        "insert_bulk_ddl": {
            "table-name": "{{snowflake_databasename}}.{{snowflake_schemaname}}.test_data3",
            "query-type": "bulk_insert",
            "format": "csv",
            "table-ddl": "create or replace table {{snowflake_databasename}}.{{snowflake_schemaname}}.test_data3(id INT not null primary key, data varchar(200);
 select * from {{snowflake_databasename}}.{{snowflake_schemaname}}.test_data3;"
        }
    }
}
