Teradata

Teradata data sources and sinks are in the database category of I/O connectors.

Tool documentation

• Teradata documentation

Connector type values

The "type": value to use in the source or sink JSON files.

Connector type	Value
Data source	DKDataSource_Teradata
Data sink	DKDataSink_Teradata

Connection properties

The properties to use when connecting to a Teradata instance from Automation.

Field	Scope	Type	Required?	Description
hostname	source/sink	string	yes	Teradata host name.
username	source/sink	string	yes	Teradata username.
password	source/sink	string	yes	Teradata password.
retry-interval	source/sink	integer	variables only	Specifies the frequency in seconds to attempt a connection. Default is 10.
retry-count	source/sink	integer	variables only	Specifies the number of attempts the system makes to establish a connection. Default is 1.

Connections

See Connection Properties for more details on connection configurations.

Defined in kitchen-level variables

teradataconfig in kitchen overrides

{
    "teradataconfig": {
        "hostname": "#{vault://teradata/hostname}",
        "username": "#{vault://teradata/username}",
        "password": "#{vault://teradata/password}"
    }
}

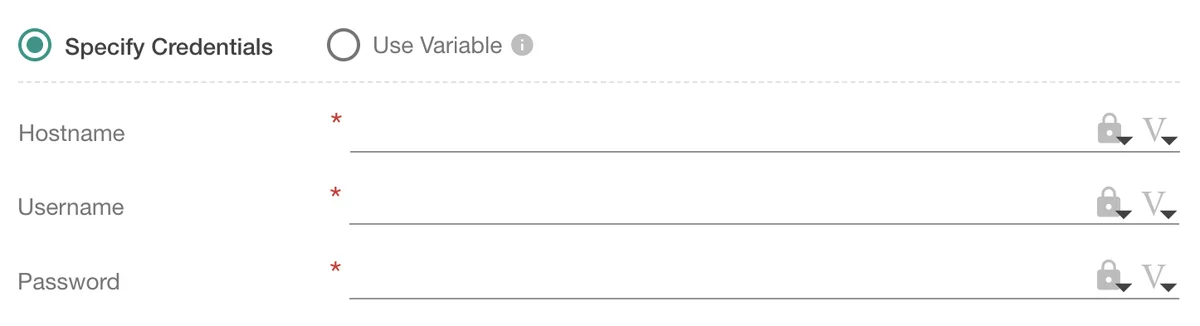

The Connection tab in a Node Editor

Expanded connection syntax

For a data source

teradata_datasource.json

{
    "name": "teradata_datasource",
    "type": "DKDataSource_Teradata",
    "config":{
        "hostname": "{{teradataconfig.hostname}}",
        "username": "{{teradataconfig.username}}",
        "password": "{{teradataconfig.password}}"
    },
    "keys": {},
    "tests": {}
}

For a data sink

teradata_datasink.json

{
    "name": "teradata_datasink",
    "type": "DKDataSink_Teradata",
    "config":{
        "hostname": "{{teradataconfig.hostname}}",
        "username": "{{teradataconfig.username}}",
        "password": "{{teradataconfig.password}}"
    },
    "keys": {},
    "tests": {}
}

Condensed connection syntax

Note

Note: Do not use quotes for your condensed connection configuration variables.

For a data source

teradata_datasource.json

{
    "type": "DKDataSource_Teradata",
    "name": "teradata_datasource",
    "config-ref": "teradataconfig",
    "keys": {},
    "tests": {}
}

For a data sink

teradata_datasink.json

{
    "type": "DKDataSink_Teradata",
    "name": "teradata_datasink",
    "config-ref": "teradataconfig",
    "keys": {},
    "tests": {}
}

Other configuration properties

See the following topics for common properties and runtime variables:

• Database Properties
• Database Variables

File encoding requirements

Files used with data sources and data sinks must be encoded in UTF-8 in order to avoid non-Unicode characters causing problems with sinking data to database tables and errors when running related tests

For CSV and other delimited files, use Save as in the program and select the proper encoding, or consider using a text editor with encoding options.

Data source example

Data transfer from Teradata to FTP server

description.json

{
    "type": "DKNode_DataMapper"
}



notebook.json

{
    "mappings": {
        "mapping1": {
            "source-name": "teradata_source",
            "source-key": "mapping1_source",
            "sink-name": "ftp_sink",
            "sink-key": "mapping1_sink"
        }
    }
}



/data_sources/source.json

{
    "name": "source",
    "type": "DKDataSource_Teradata",
    "config": {
        "username": "vault://teradata/username",
        "password": "vault://teradata/password",
        "hostname": "vault://teradata/hostname"
    },
    "keys": {
        "mapping1_source": {
            "sql": "SELECT * FROM test_data.td_testing",
            "query-type": "execute_query",
            "format": "csv"
        }
    }
}
{
    "name": "source",
    "type": "DKDataSource_Teradata",
    "config": {
        "username": "vault://teradata/username",
        "password": "vault://teradata/password",
        "hostname": "vault://teradata/hostname"
    },
    "keys": {
        "mapping1_source": {
            "sql": "SELECT * FROM test_data.td_testing",
            "query-type": "execute_query",
            "format": "csv"
        }
    }
}



/data_sinks/sink.json

{
    "name": "sink",
    "type": "DKDataSink_FTP",
    "config": {
        "username": "vault://ftp/username",
        "hostname": "vault://ftp/hostname",
        "port": "vault://ftp/port",
        "password": "vault://ftp/password",
    },
    "keys": {
        "mapping1_sink": {
            "file-key": "output.csv",
            "use-only-file-key": true
        }
    }
}
{
    "name": "sink",
    "type": "DKDataSink_FTP",
    "config": {
        "username": "vault://ftp/username",
        "hostname": "vault://ftp/hostname",
        "port": "vault://ftp/port",
        "password": "vault://ftp/password",
    },
    "keys": {
        "mapping1_sink": {
            "file-key": "output.csv",
            "use-only-file-key": true
        }
    }
}

Data sink example

Data transfer from FTP server to Teradata

description.json

{
    "type": "DKNode_DataMapper"



notebook.json

{
    "mappings": {
        "ftp_to_td": {
            "source-name": "ftp_source",
            "source-key": "ftp_to_td_source",
            "sink-name": "teradata_sink",
            "sink-key": "ftp_to_td_sink"
        }
    }
}



/data_sources/source.json

{
    "name": "source",
    "type": "DKDataSource_FTP",
    "config": {
        "username": "vault://ftp/username",
        "hostname": "vault://ftp/hostname",
        "port": "vault://ftp/port",
        "password": "vault://ftp/password",
        "passive": true
    },
    "keys": {
        "ftp_to_td_source": {
            "file-key": "example.csv",
            "use-only-file-key": true
        }
    }
}



/data_sinks/sink.json

{
    "name": "sink",
    "type": "DKDataSink_Teradata",
    "config": {
        "username": "vault://teradata/username",
        "password": "vault://teradata/password",
        "hostname": "vault://teradata/hostname"
    },
    "keys": {
        "ftp_to_td_sink": {
            "query-type": "bulk_insert",
            "table-name": "test_data.td_testing",
            "format": "csv"
        }
    }
}
