Variable Hierarchy

Recipe variables can be implemented as variable sets at different levels. The system overwrites a variable's value when that same variable is defined in two or more levels.

Variables are overwritten based on the following hierarchy.

Variable set hierarchy

• Order-level variable set: order overrides are defined when submitting an order. Order-level variable values take precedence over values in kitchen, variation, and base recipe variable sets.
  • Kitchen-level variable set: defined in Kitchen Overrides. Kitchen-level variable values take precedence over values in variation and base recipe variable sets.
    • Variation-level variable set: defined in variations.json. Variation-level variable values take precedence over values in the base recipe variable set.
      • Base recipe variable set: defined in variables.json.

Generated runtime variables override the variable definitions described above.

System variables are read-only and cannot be overridden.

Note

Note on overriding dictionary variables: If you want to override a single key's value within a dictionary variable you must redefine the entire dictionary as an override. You cannot override a single key.

View the variable hierarchy

You can view the variable hierarchy for any variation:

Open a kitchen > select a recipe > click a variation name > select the Variables tab.

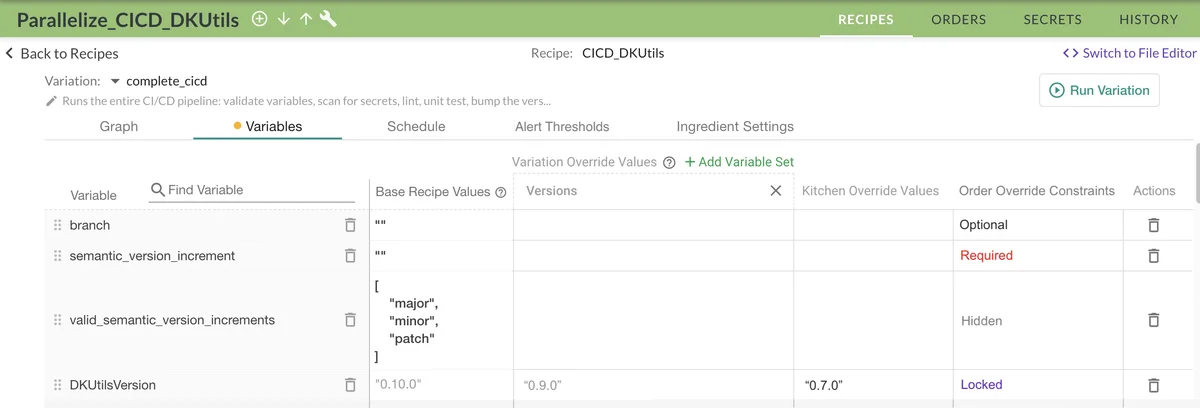

Visual example in Automation

Example with schedules

The following example includes variable override behavior when schedules are introduced.

Example

A scheduled order is running. A variable that is overridden in the initial run of this scheduled order remains in place for all future order runs. If a variable in the recipe for this variation is changed and saved, the new variable value will appear in all future orders of the same scheduled order.
