Project Overview Enterprise

Observability data is always associated with a specific project. Use the Project drop-down in the menu to navigate between projects.

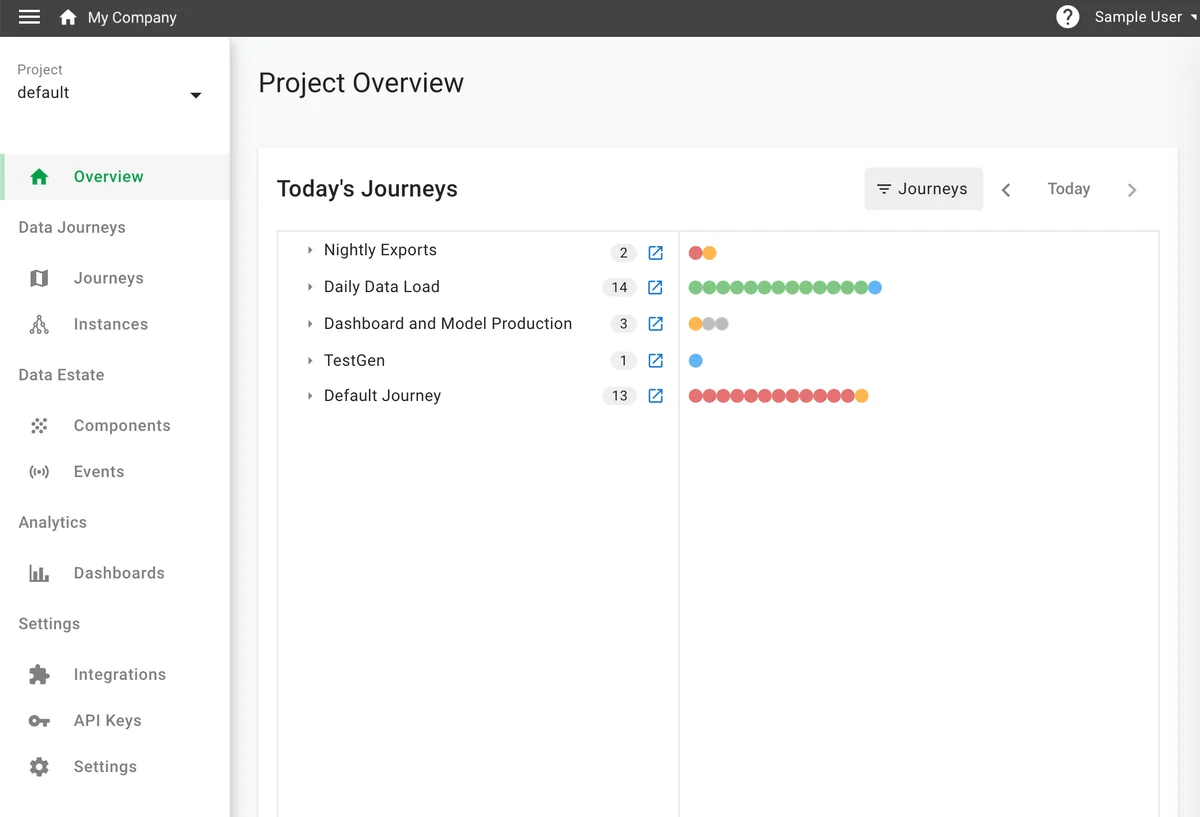

Project Overview page

The Project Overview page provides an at-a-glance view of the current day's journey activity, historical reference to instances in the past, and a look at upcoming instances.

Observability displays data on the Project Overview page in your local browser time.

Tip

Empty Overview? For the system to display journeys and their instances, you first need to build journeys. See Create Journeys for more details.

Today's Journeys

Today's Journeys show a list of the journeys in your project that have had—or will have—instances occur during the selected day.

• Each journey includes the number of instances with a link to open the journey in a new tab.
• Each instance is represented by a dot, where the color is its status. A filled dot indicates that the instance contains at least one run.

Drill down

• Use the Journeys filter to narrow the results by journey.
• Use the and arrows to view a different day. Click Today to return to the current day's data.
• Hover your cursor over an instance dot for a summary of its details
• Click an instance dot to go to the instance details.

Visual example in Observability

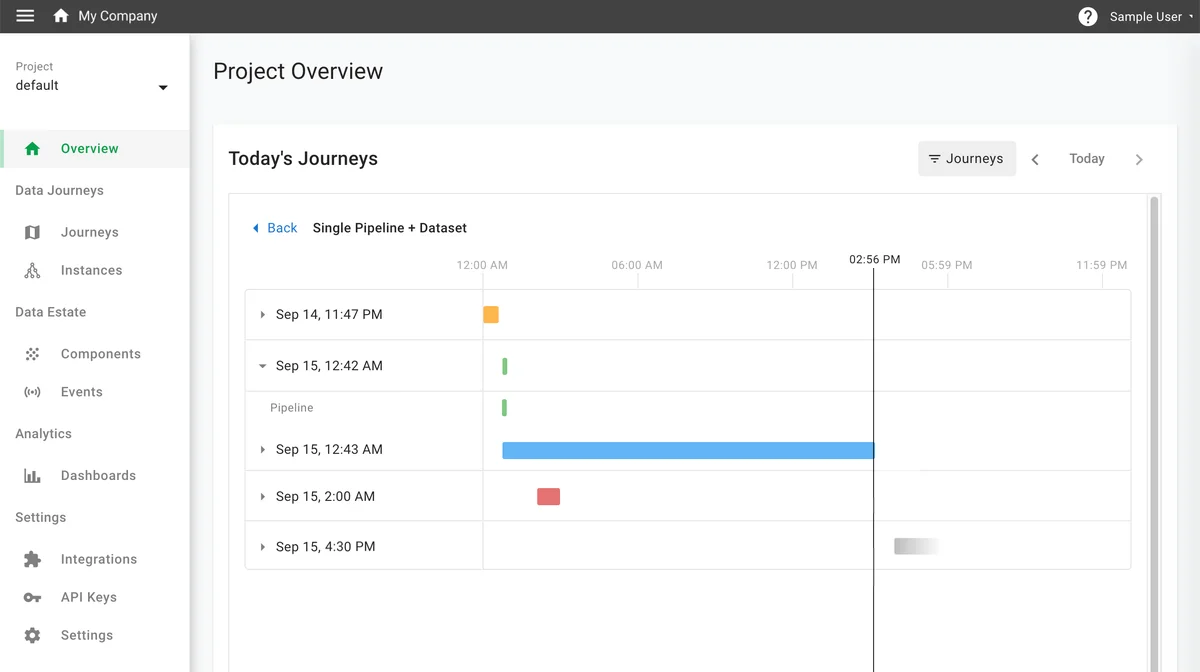

Expand a journey

Select any journey name to see the instances as they occur over time. Here, each bar represents an instance's timing and status.

Hover your cursor over a bar for a summary of the instance details. Click a bar to go to the instance details.

Expand an instance

After you expanded a journey, open any instance to drill down and see the batch pipeline runs that have occurred during the instance.

Hover your cursor over a bar for a summary of the run details. Click any bar to go to the run details.

Visual example in Observability

Troubleshooting: Empty Instances
